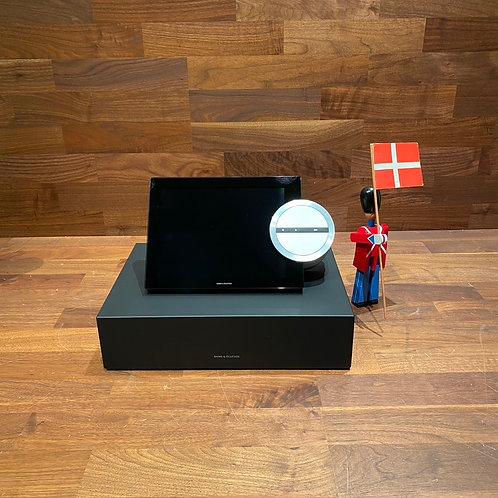

BeoSound 5

Dimensions W x H x D

31 x 19 x 7 cm (W x H x D)

Weight

2.65 kg.

Dimensions W x H x D, on Wall

31 x 19 x 7 cm (W x H x D)

Dimensions W x H x D, incl. Wall bracket

31 x 21 x 17 cm (W x H x D)

Dimensions W x H x D, incl. Table stand

31 x 18 x 24 cm (W x H x D)

Dimensions W x H x D, incl. Floor stand

31 x 103 x 31 cm (W x H x D)

BeoMaster 5

Dimensions W x H x D BeoSound 5

37.9 cm x 27.7 cm x 9.9 cm (W x D x H)

Weight

4.7 kg.

BeoSound 5

Cabinet finish

Anodised aluminium, pressure diecast aluminium, Coated glass

IR-remote control

Beo4 and Beo5

Close-up operation panels

Wheel, pointer and volume

Display type

10,4" XGA(1024 x 768) TFT display, 16.777.216 colours

N.RADIO, N.MUSIC and MOTS ("More Of The Same")

Power supply

Powered from BeoMaster 5

BeoMaster 5

Power supply EU, GB, US, KOR, AUS, LAT, CHK

200 - 240 V, +10 / -15 %, 50-60 Hz

Power supply JPN, US, TWN

100 -127 V +10 / -15 %, 50-60 Hz

Networked standby

1.5 watts

BeoSound 5

Standby only possible in LAN setup (not in WLAN)

Noise

Active max. 29dB, in Standby max. 20dBA

Operating conditions

The product is intended for indoor use in dry, domestic environments only.

Use within a temperature range of 10-40°C (50-105°F).

Operation system and Hardware:

Operation system

Microsoft Windows XP Embedded

CPU

VIA 2.0 GHz

RAM

1 GB

Hard disk drive

500 GB / 1 TB (As from serial number 22360310)

Signal-to-noise-ratio (Master Link)

>=105 dB

Signal-to-noise-ratio (Power Link)

>=97 dB

Features

N.Music, N.Radio, Photo, Web

Security

Antivirus, Windows XP SP2 firewall

Display resolution DVI-I

1920x1200 (supports HD 1920x1080p) depending on actual TV

Supported formats

N.RADIO

WMA, MP3, ASX (MS advanced play list format). Normally locates WMA streaming, but can also locate MP3 streaming. M3U (Simple play list format). Locates MP3 streaming.

N.MUSIC

M3U, M4A, WMA (including lossless), FLAC, MP3, MP2, WAV, ASF and AAC (MAC format)

BeoSound 5 can play FLAC formats up to 24 bit / 192 KHz but formats above 44.1 kHz will be downsampled to 44.1 kHz/16 bit.

Please observe that the WAV format cannot contain metadata/tag information resulting in albums being listed as "Unknown album"

Support for MP3 tag information ID3v2 up to and including version 2.3

We recommend using WMA lossless when ripping from Windows


*.bmp: Bitmap (all colour depths 1-32 bit)
*.gif: GIF (only the first frame of animated GIFs is shown) *.png: Portable network graphics
*.tiff: TIFF images
*.jpeg, *.jpg: JPEG standard 24 bit

Video (WEB)

*.mpeg; *.mpe;*.mpg: MPEG-x various MPEG format, but only MPEG-1 supported
*.avi: only M-JPEG, MS MPEG4 and uncompressed AVI is Supported
*.wmv: Windows Media Video
*.vfw: (a so-called container that can contain several different compression formats).

BeoSound 5

Power input + IR

1

USB mini

1

IR

1

HDMI mini

1

BeoMaster 5

DVI-I (for TV)

1

S-Video (for TV)

1

YPbPr (3 x RCA for TV)

1

Master Link

1

Power link

2

USB (USB 2.0 HiSpeed)

2

Ethernet RJ45 10/100 Mbit/s

1

S/P-DIF

1

Line-out

1

BeoSound 5

Power, USB, DVI-D and IR

WireLess

via USB connector

SD/MMC card reader slot

via USB connector

Product name:

Floor stand

Type no.

2191

Part no.

1219111

Material/Colour

Iron/Zinc

Dimensions W x H x D

See dimensions for BeoSound 5

Product name:

Table stand

Type no.

2192

Part no.

1219266

Material/Colour

Cast iron/Black

Dimensions W x H x D

See dimensions for BeoSound 5

Kit for table stand for use with CD Ripping Device

3376440

Product name:

Wall bracket, extended

Type no.

2193

Part no.

1219366

Material/Colour

Glass-filled plastic/black

Dimensions W x H x D

See dimensions for BeoSound 5

Product name:

BeoSound 5, Cable Extender up to 40 m

Type no.

2196

Part no.

1219666

Colour variants

Black

Dimensions W x H x D

80 x 28 x 72 mm BM5 box

116 x 28 x 72 mm BS5 box

50 x 33 x 115 mm power supply

Product name:

BeoSound 5, 9 m solution

Part no.

9 m power cable

9 m video cable

4.5 m USB cable incl. repeater

4.5 m standard USB cable

6270914

6270962

6270961

6270960

Colour variants

Black

Product name:

Wireless USB adapter

Standards

802.11n draft (compatible with 802.11b/g)

Part no.

8005139

Plug n' play

Driver embedded in BeoMaster 5

Dimensions W x H x D

50.8 x 29.8 x 3.65 mm

Product name:

External IR eye

Part no.

8087030

Dimensions W x H x D

72 x 72 x 29 mm
