BeoVision 7 combines both an LCD monitor with an integrated DVD Player, DSS surround sound module and a dedicated loudspeaker in BeoLab 7-1. The concept emphasises the separation of picture and sound together with a good number of placement options. With BeoLab 7 the very highest level of acoustic performance is delivered. BeoVision 7 may be used as either a stand-alone television set or as a large-screen monitor within a domestic surround-sound system.

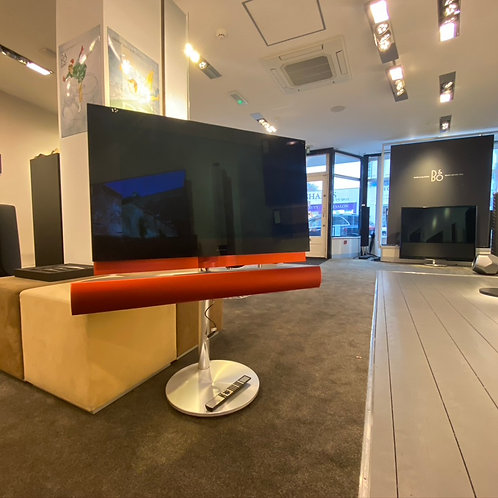

This version of the Beovision 7-32" in this colour red is very rare.
Beovision 7 - 32" MKV HDMI VERSION (9184)
1831947
2009
Dimensions
Dimensions W x H x D
882 x 566 x 159 mm
Dimensions W x H x D package
1000 x 845 x 700 mm
Weight
30 kg
Weight in package
43 kg
Specifications
LCD
BeoVision 7-32 MK V
Chassis type
B6
Designer
David Lewis
Cabinet finish
Glass, aluminium and soft touch lacquer paint
Colour variants
Black, Blue, Dark grey, Red, Silver, Golden
(Golden cannot be ordered without DVD)Mains voltage range
220 - 240 V +10/-15% 50-60 Hz
Power consumption
Typical (IEC 62087:2. ed) 125 W
Stand-by 0,8 W
Peak luminance ratio: 65%
Terminal
Beo4 (to be ordered separately)
Diagonal picture size
32"
Aspect ratio
16:9
Contrast ratio
Typically 3000:1
Resolution
1366 x 768 (SPVA)
Display colours
16,7 million
VisionClear
Adaptive black
Digital Adaptive Dynamic Luminance Peaking
Digital Adaptive Noise Reduction
Blue Stretch
Digital Colour Transient Improvement
Motion Compensated Film Mode
Comb Filter
Vertical Peaking
Automatic Picture ControlLuminance of white
Typically 500cd/m2
Response time
Typically 8msec
Viewing angle
Typically +/-89 degrees both vertical and horizontal
Refresh rate
50Hz
Contrast screen
Anti-reflex coated
HD-ready
Yes
Formats
Format 1:
16:9 Panorama + soft scroll
15:9 Panorama + soft scroll
4:3 (only active via setup in service menu)
Format 2:
Letterbox + Soft Scroll
Format 3:
16:9
Misc.:
Automatic format optimization via "Black Bar Detection"
16:9 detection on all Scart connectors
Support of WSS (Wide Screen Signalling Pulses) from broadcaster
Teletext
Level 2 ½
Wide Screen Signalling (WSS)
Video Programming by Teletext (VPT)
9 memory pages per programme
17 teletext languages in 7 groups
Group 0
English, German, Swedish, Italian, French, Spanish/Portuguese, Czech/Slovak
Group 1
Polish, German, Swedish, Italian, French, Serbo-Croatian, Czech/Slovak, Romanian
Group 2
English, German, Swedish, Italian, French, Spanish/Portuguese, Turkish
Group 3 (Russian)
English, Russian, Estonian, Czech/Slovak, German, Lithuanian/Lettish, Ukrainian
Group 4 (Greece)
English, German, Swedish, Italian, French, Spanish/Portuguese, Turkish, Greek
Group 5 (Arabic)
English, Arabic, French
Group 6 (Hebrew)
English, Hebrew, Arabic
Options
1, 2, 3, 4, 5, 6
Tuning
99 programmes
auto tune
programme move and automatic naming
Tuner range
45-860 MHz
TV programmes
99
Stereo decoders
A2 + Nicam
Menu languages
English
Danish
Dutch
Spanish
Italian
German
French
SwedishPIN-code protection
Yes
Further info
See PDF: Video input formats
Loudspeakers:
Optional
Types
BeoLab 7-1 (Type 6210/6212) depending on market
BeoLab 7-4 (Type 6215/6216) depending on market
For more technical details see Tech. Spec. for BeoLab 7-1 and BeoLab 7-4
System modulator:
Frequency range
471,25-855,25MHz (in 1MHz step)
Dual side band
Audio
Mono
FM sound system G : 5,5MHz (depending on setup)
FM sound system I : 6MHz (depending on setup)
Dolby® Digital Decoder:
Standard (always mounted)
Decoding capabilities
Dolby Digital 5.1 channel decoding
DTS 5.1 channel decoding
Automatic format detection
Sound modes (Speaker)
1, 2, 3, 4, 5
Built-in DVD (Optional):
Playback
DVD-Video, Video CD, CD-DA, CD-R, CD-RW, CD-MP3, JPEG, DivX, Multi-standard PAL/NTSC
DVD Region
According to type no.
Set-top Box Controller:
Controlling boxes with Beo4
Supported boxes: See list at Bang & Olufsen Retail System (via internet).
Projector out
16:9 scanning formats - 50 Hz & 60 Hz:
Resolution: 1280 x 720p (720p) (1650 x 750p)
Pixel clock: 74.25 MHz
Line frequency: 37.500 Hz (50 Hz)
Line frequency: 45.000 Hz (60 Hz)
H-sync polarity: Negative
H-sync length: 128 pixels
V-sync polarity: Negative
V-sync. length: 5 lines
Geometry: One default adjustment. The picture is projected on the screen as it is shown on LCD or plasma panels.
Standards: SMPTE 296M-1997 (converted to 50 Hz) and VESA CVT
Connections
TV Input
1 x 75 ohms aerial female
Output Modulator
1 x 75 ohms aerial male
Scart
AV1
CVBS in/out, RGB in, Y/C with automatic detect, automatic 16:9 sense (pin 8), B&O AVL (2 way)
AV2
CVBS in/out, RGB in, Y/C with automatic detect, automatic 16:9 sense (pin 8), B&O AVL (1 way)
AV3
CVBS in, RGB in, automatic 16:9 sense (pin 8), B&O AVL (1 way)
PC input
VGA connector
HDCP is supported if used as HD input
Camcorder/Auxiliary
1 x phono video in
1 x phono audio right in
1 x phono audio left in
Auto detection on video signal
HD input
2 x HDMI with HDCP support
Headphone
1 x 3,5 mm jack
External BeoLab speakers
6 x Power link
Digital audio input
4 x phono A1 - A4
DVB-HD module (optional)
1 x F-connector female
1 x USB (for update reason only)
STB-Controller output
4 x 3,5 mm jack mono
STB-C table is updated through C1
BeoLink®
1 x Master link connector
Motorised stand operation
1 x 5 pole DIN connector
Projector output
1 x DSUB 15 pin female VGA
External IR input
1 x 3,5 mm jack
Optional features/accessories
Product name:
DVB-HD T2/C/S2 Module (MK III)
Type no./K_Mat/Item no.
4772/K_DVB4772S/1477200
Specifications
See DVB section in BeoWise
Product name:
DVB-HD T2/C Module (MK III)
Type no./K_Mat/Item no.
4770/K_DVB4770S/1477000
Specifications
See DVB section in BeoWise
Product name:
Digital Video Broadcasting module (DVB-HD T/C/S2)
Type no.
4488
Part no.
1448800
Specifications
See DVB section in BeoWise
Product name:
DVB-HD module
Type no.
4482
Part no.
1448200
Product name:
Home Cinema Control kit
Type no.
4364
Part no.
1436400
Product name:
Table stand
Type no.
4097
Part no.
1409766
Colour
Black
Cabinet finish
Aluminium
Product name:
Motorised table stand
Type no.
4092
Part no.
1409211
Colour
Silver
Cabinet finish
Aluminium
Product name:
Motorised floor stand
Type no.
4091
Part no. Silver
1409111
Part no. Golden
1409131
Colour
Silver, Golden
Cabinet finish
Aluminium
Product name:
Wall bracket (Fixed)
Type no.
4499
Part no.
1449911
Colour
Silver
Cabinet finish
Aluminium
Technical details
Close to wall
Product name:
Wall bracket for tv and speaker (Close)
Type no.
4095
Part no.
1409511
Colour
Silver
Cabinet finish
Aluminium
Technical details
Incl. speaker mounting
Product name:
Wall bracket (Extended)
Type no.
4096
Part no.
1409611
Colour
Silver
Cabinet finish
Aluminium
Technical details
Incl. speaker mounting
Product name:
RF link amplifier
Type no.
4052
Part no.
1405266
Colour
Black
Product name:
RF link amplifier
Type no.
4053
Part no.
1405366
Colour variants
Black
Technical details
With return path
Product name:
Galvanic isolator
Part no.
8039004
Technical details
To be used with RF link amplifiers
Part numbers are subject to change and will not be revised on this page. However, the Retail Order System will always inform of a replacement number.
Market specifications
Market
Type no.
Country
Active CTV system
Basic CTV system *)
NEU 2
9181
Albania
Austria
Belgium
Croatia
Denmark
Faroe Islands
Finland
Germany
Greece
Greenland
Holland
Iceland
India
Indonesia
Israel
Italy
Jordan
Kuwait
Liechtenstein
Luxembourg
Malaysia
Nigeria
Norway
Oman
Pakistan
Portugal
Singapore
Slovenia
Spain
Sweden
Turkey
United
Arab Emirates
B/G
B/G
NEU 3
9182
Indonesia
Malaysia
Singapore
B/G/L/L'/I
B/G/L/L'/I/D/K
HK
9183
Hong Kong
D/K/M/I
B/G/L/D/K/M/I
GB
9184
Botswana
Ireland
South Africa
United Kingdom
I
B/G/L/L'/I/D/K
AUS
9185
Australia
New Zealand
B/G
B/G
EEU 2
9186
Bulgaria
Czech Repub.
Hungary
Poland
Romania
Serbia
Slovak Repub.
B/G/L/L'/I/D/K
B/G/D/K
EEU 5
9187
Azerbaijan
Estonia
Georgia
Ghana
India
Kazakhstan
Latvia
Lithuania
Nigeria
Pakistan
Russia
Ukraine
Uzbekistan
Vietnam
B/G/L/L'/I/D/K
B/G/D/K
FGB
9188
Bahrain
Egypt
France
Lebanon
Luxembourg
Morocco
Qatar
Saudi Arabia
Switzerland
B/G/L/L'/I/D/K
B/G/L/L'/I
CN
9189
China
B/G/L/D/K/M/I
D/K/M/I
TH
9190
Thailand
B/G
B/G/L/L'/I/D/K
3 Months Parts and Labour
3 STAR - Our Approved Used Bang & Olufsen 3* products are in above-average condition for their age. They may have minor cosmetic damage and visable signs of normal use
****0797
Sold with all accesories featured in the images, a motorized stand, a loudspeaker and a Beo 4 Remote.
9184
- Collection Only (no original box available)
