BeoVision 10 is an incarnation of the BeoVision 5 design theme, finally done in the style originally conceived - a TV which emulates a picture in all dimensions - even thickness. The set is a mere 7 cm thick. A 200Hz panel with edge type LED lighting offers superb clarity, with the advantages of VisionClear added to the mix.

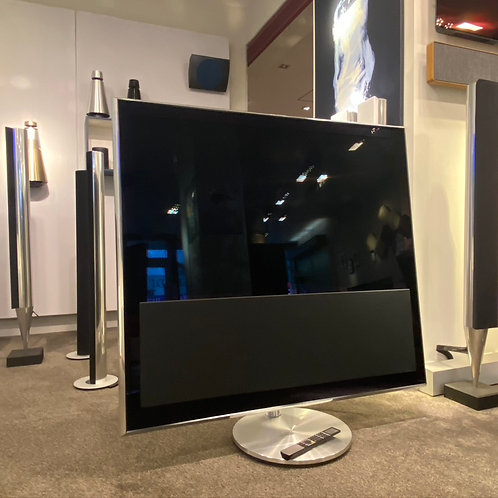

Beovision 10 - 46" MKI (9565)
2550
2021
Dimensions
Dimensions, TV W x H x D
113.8 x 103.4 x 6.4 cm
Weight
52.5 kg
Dimensions, TV in packaging W x H x D
110 x 125 x 80 cm
Weight incl packaging
68.35 kg
Dimensions W x H x D, incl wall bracket
113.8 x 103.4 x 6.9 cm
Dimensions W x H x D, incl floor stand
113.8 x 115.4 x 40.5 cm
Specifications
BeoVision 10-46 Chassis type C2.2 Cabinet finish Black, white Frame finish Silver Colour variants front cloth Black, blue, dark grey, silver, orange, white Mains voltage range 170-264 VAC/47-63 Hz Power consumption Typical (IEC 62087:2. ed): 147 W
Standby 0.9 W
Peak luminance ratio: 65%Remote control Beo4 or Beo5 - Not included Diagonal picture size 46 inches Backlight type 2-side edge type with 264 LEDs Contrast ratio Typical 5000:1 Contrast enhancement Global backlight dimming Motion picture improvement Adaptive film judder compensation Resolution 1,920 x 1,080 pixels - Full HD Display colours 1.07 billion Luminance of white 450 cd/m2 Response time 6 msec Refresh rate 200 Hz
240 HzViewing angle +/-89 degrees both vertically and horizontally Contrast screen Optional
Anti-reflection coating on both sidesPicture formats Format 1:
16:9
Panorama - 15:9
Panorama - 4:3
Format 2:
Letterbox + Soft scroll.
Format 3:
16:9
Automatic format optimisation via "Black Bar Detection"
16:9 detection on all scart connectors
Support of WSS (Wide Screen Signalling pulses) from broadcaster
Format 4:
Extended
The bars can be removed and the picture is shown in a 16:9 formatPicture optimisation VisionClear Room adaptation Automatic Picture Control Teletext Level 1,5, 2000 pages
Teletext and Picture, 9 memory pages, WSSOperation conditions 10-40 degrees Celsius
50-104 degrees FahrenheitTuning Analogue
According to type and setup
B/G/L/L'/I/D/K PAL, SECAM, NTSC on AVTuner range Analogue
45 - 860 MHz: VHF, S-band, Hyper-band, UHF 99 programmes, auto tune, programme move and automatic namingVideo distribution Master Link Audi distribution Stereo audio distribution via Master Link Stereo decoders Analogue
A2 + NicamMenu languages English, Danish, Dutch, Spanish, Italian, German, French, Swedish Pincode protection No Loudspeakers: Types Integrated stereo speaker
(centre speaker if surround sound setup)Long term max. output power per module Maximum 20 W Amplifiers 1 x Analogue Class B 30 W, 4 x Digital Class D 10 W Frequency range 85-20,000 Hz Cabinet principle/ net volume Bass reflex Woofer 100 mm
4 inchesMidrange 50 mm
2 inches
Full range typeTweeter 19 mm
3/4 inches
Dome typeBass equalizer Adaptive Bass Linearisation (ABL) Cabinet volume 1.8 litres System modulator: BeoLink video/audio distribution Frequency range, Video According to setup:
G or I or RF output
Video frequency range: 471.71- 855.25 MHz (in 1 MHz steps). Dual side band.Frequency range, Audio According to setup:
G or I or RF output
Audio frequency range:
System G: 5.5 MHz (system can be set in Service Menu)
System I: 6 MHz (system can be set in Service Menu)Connection 1 x IEC-con male Master Link options 0, 1, 2, 4, 5, 6 Dolby® Digital Decoder: Sound input formats PCM, multichannel PCM Decoding capabilities Dolby Digital 5.1, DTS 5.1, DTS Digital Surround, Neo:6, Pro Logic II Sound modes Speaker modes 1 - 5 :
Mode 1: Stereo centre speakers (subwoofer muted)
Mode 2: Stereo in L/R speakers (subwoofer active)
Mode 3: Dolby 3 stereo
Mode 4: Dual stereo, stereo in L/R front and rear speakers (subwoofer active)
Mode 5: Dolby digital, Dolby Pro-logic, DTS, Dolby 5.1Peripheral Unit/Set-top Box Controller: 4 Controlling boxes with Beo4 Supported boxes: See list in IR-Table Generator via ServiceTool MK II HDMI Inputs 2 HDMI formats 480i
480p
576i
576p
600p
720p
768p
1080i
1080pVGA inputs 1 VGA formats 60 Hz
640 x 480
800 x 600
1024 x 768
1280 x 720
1360 x 768Further format info See PDF: Video Inputs Connections
TV Input
1 x IEC-con female
AV connections
AV1
Video in/out + SPDIF + audio L/R in/out + HDMI + 21 pin scart 1-way AVL
AV2
Y-Pb-Pr + Y/C + SPDIF + Video in/out + audio L/R in/out + HDMI + 21 pin scart 1-way AVL
AV3
VGA + Video in + SPDIF + audio L/R + HDMI
AV4
Video in/out + SPDIF + audio L/R in/out + HDMI + 21 pin scart 2-way AVL
AV5
Video in + SPDIF + audio L/R in + HDMI
AV6
Virtual connection, only when HDMI Expander is used
Y-Pb-Pr + SPDIF + HDMI
PC input
1 x VGA
HDMI input
2 x HDMI (can also be used for pc input)
BeoLink
Master Link
Camcorder/Auxiliary
3 x Phono
Headphone socket
1 x 3.5 mm stereo jack
Dolby Digital
- External BeoLab speakers
- Digital audio input
2 x Power Link front
2 x Power Link rear
1 x Power Link subwoofer
1 x Phono SPDIF 1
1 x Phono SPDIF 2
DVB-HD, optional
1 x IEC-con female
1 x USB (only for DVB-HD module software update)
STB-Controller output
1 x 3.5 mm mono jack PUC1 (also used for software update)
1 x 3.5 mm mono jack PUC2
1 x 3.5 mm mono jack PUC3
1 x 3.5 mm mono jack PUC4
System Modulator output
1 x IEC-con male
Motorised stand
1 x Micro fit 8 pin
Optional features/accessories
Product name:
Front cloth silver
Type no.
6052
Part no.
1605213
Colour
Silver
Product name:
Front cloth orange
Type no.
6052
Part no.
1605215
Colour
Orange
Product name:
Front cloth red
Type no.
6052
Part no.
1605224
Colour variants
Red
Product name:
Front cloth white
Type no.
6052
Part no.
1605225
Colour variants
White
Product name:
Front cloth black
Type no.
6052
Part no.
1605226
Colour variants
Black
Product name:
Front cloth blue
Type no.
6052
Part no.
1605228
Colour variants
Blue
Product name:
Front cloth dark grey
Type no.
6052
Part no.
1605249
Colour variants
Dark grey
Product name:
Cable cover, 600 mm
Type no.
4668
Part no.
1466813
Cabinet finish
Silver
Dimensions W x H x D
60 x 47 x 600 mm
Product name:
Cable cover, 1140 mm
Type no.
4675
Part no.
1467513
Cabinet finish
Silver
Dimensions W x H x D
60 x 47 x 1140 mm
Product name:
Wall bracket
Type no.
4690
Part no.
1469013
Cabinet finish
Silver
Product name:
Floor stand
Type no.
4666
Part no. silver
1466613
Part no. black
1466689
Colour variants
Silver
Black
Comments
Turns +/- 35 degrees
Product name:
Easel stand
Type no.
4722
Part no.
1472225 (White)
Part no.
1472226 (Black)
Product name:
Cabinet
Type no.
4659
Part no. white
1465945
Part no. black
1465946
Colour variants
Black
White
Product name:
Anti-reflection coated screen
Part no.
3321498
Product name:
DVB-HD module (MK I)
Type no.
4670
Part no.
1467000
Product name:
DVB-HD T/C/S2 (MK II)
Type no.
4685
Part no.
1468500
Product name:
DVB-HD T2/C/S2 Module (MK III)
Type no./K_Mat/Item no.
4780/K_DVB4780S/1478000
Specifications
See DVB section in BeoWise
Product name:
DVB-HD T2/C Module (MK III)
Type no./K_Mat/Item no.
4778/K_DVB4778S/1477800
Specifications
See DVB section in BeoWise
Market specifications
Market
Type no.
Suitcase
variant
Country
Active CTV
system
Basic CTV
system *)
All
9565
ALL
Australia, Austria, Azerbaijan, Bahrain, Belgium, Botswana, Bulgaria, China, Croatia, Czech Republic, Denmark, Egypt, Estonia, Faroe Islands, Finland, France, Georgia, Germany, Ghana, Greece, Holland, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, Kazakhstan, Kuwait, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malaysia, Morocco, New Zealand, Nigeria, Norway, Oman, Pakistan, Poland, Portugal, Qatar, Philippines, Romania, Russia, Saudi Arabia, Serbia, Singapore, Slovak Republic, Slovenia, South Africa, Spain, Sweden, Switzerland, Thailand, Turkey, Ukraine, United Arab Emirates, United Kingdom, Uzbekistan, Vietnam
BG, L, L', I, DK
BG, L, L', I, DK
6 Months Parts
3 Months Labour
3 STAR - Our Approved Used Bang & Olufsen 3* products are in above-average condition for their age. They may have minor cosmetic damage and visable signs of normal use
****0703
Mains leads, motorized floor stand and beo 4 remote included.
9565
- Collection Only (no original box available)
